See nothing, hear everything

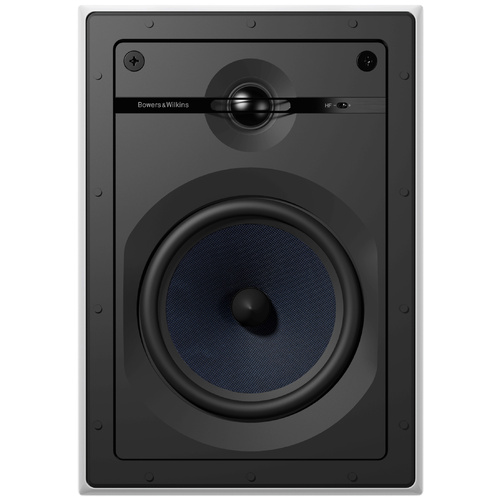

The CWM663 features a blue Aramid Fibre bass/midrange driver housed in a die-cast chassis which provides the extra rigidity to provide a cleaner, faster bass. Its aluminium tweeter also incorporates a Nautilus™ tube to absorb unwanted sonic radiation. The CWM663 also utilises a threeposition high frequency switch to fine tune the sound. The speaker is incredibly easy to install incorporating QuickDogs™ and plug-and-play functionality

If unobtrusive, quality stereo sound is your priority, look no further.

Description    2-way in-wall system

Drive units    1x ø25mm (1in) Nautilus™ tube loaded aluminium dome tweeter 1x ø150mm (6in) blue Aramid Fibre cone bass/midrange

Frequency Range (-6dB)    45Hz – 50kHz

Maximum Amp Power    25 – 150w

Sensitivity SPL (2.83V, 1m)    88dB

Impedance Nominal (min)    8Ω (4.5Ω)

Frame height    315mm

Frame width    221mm

Cut-out height    279mm

Cut-out width    183mm

Depth behind surface    95mm

Protrusion    4mm


SKU 348
Shipping Weight 10.0000kg
Shipping Width 0.580m
Shipping Height 0.400m
Shipping Length 0.400m
Shipping Cubic 0.092800000m3
