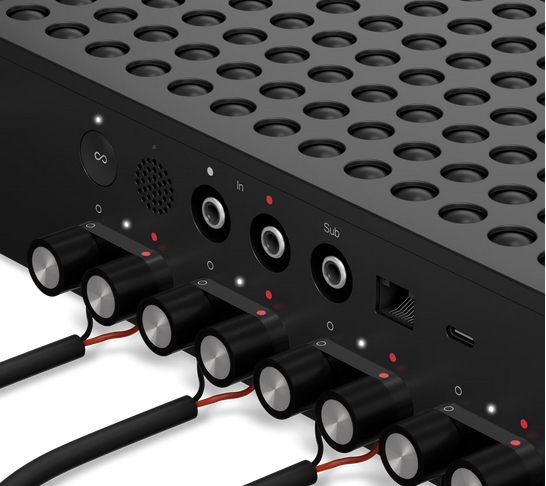

Speaker Outputs

8 amplified outputs each independently configurable for stereo or mono

Power

125 W per channel @ 8Ω (all channels driven)

Minimum Impedance

2.67Ω with Sonos Architectural speakers

Damping Factor

>400 (ref. 8 ohms, 20 Hz to 1 kHz)

Amplifier Technology

Class D with GaN and PFFB

Total Harmonic Distortion

0.005% at 2.83Vrms-15Vrms

Frequency Response

±0.5 dB, 15 Hz - 20 kHz

Channel Separation (Crosstalk)

-100dB at 1 kHz 2.83Vrms
-80dB at 10 kHz 2.83Vrms

Signal-to-Noise Ratio

114dB ref 125W into 8-Ohm

ProTune

10-band parametric EQ with ±15dB gain, Q, and frequency control.
Option for high-shelf, low-shelf, and bell filter types.
Gain trim: -15 - +5 dB
Delay: 0 - 50ms
Highpass: 15-100Hz

All available on per-channel basis

Optimise Sonos Speakers

When selected in the Sonos app, Optimise Sonos Speakers allows Amp Multi to recognise Sonos Architectural speakers, then applies custom tuning and DSP to provide more robust sound with a more even frequency response, optimising system performance and ensuring stable operation.



(766)

SKU 766
Brand Sonos
Shipping Weight 3.0000kg
Shipping Width 0.335m
Shipping Height 0.125m
Shipping Length 0.290m
Shipping Cubic 0.012143750m3
